Florestone

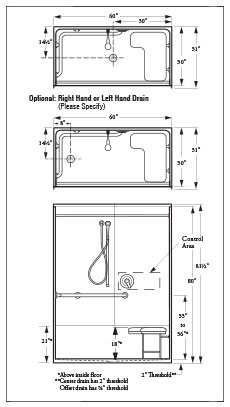

Model 3PC 32-60H
Institutional Shower

60" x 31" x 81½"
Weight: 260 lbs.

Architect's
Specifications


Furnish and install three-piece Model 3PC-32-60H designed for barrier-free use as manufactured by Florestone. Unit to be manufactured of AcrylX™, and to be supplied with slip-resistant floor laminated for extra rigidity. Basic shower will conform to ANSI-Z-124.2. Unit to include stainless steel curtain rod; Symmons® pressure balance mixing valve with concealed check stops; Moen® hand-held shower head with hose and stainless steel slide bar/grab bar; stainless steel corner grab bar; stainless steel recessed soap dish; white naugahyde folding wheelchair transfer seat. When ordering please specify right or left hand seat and drain location: center, right-hand drain or left-hand drain.

Note:
Center drain has 2" threshold
Offset drain has 7/8" threshold


Supplied with 2" brass drain.

Shower curtain optional.
Curtain Size: 72" x 72".
Standard Color: White.
Special order colors available.

Shower comes complete with accessories:

Stainless steel curtain rod

Symmons® pressure balance mixing valve

Moen® hand-held shower head with hose and stainless steel slide
bar/grab bar

stainless steel corner grab bar

Stainless steel recessed soap dish

White naugahyde folding wheelchair transfer seat
(specify right or left hand)

Optional: Phenolic folding wheelchair transfer seat
(specify right or left hand)


Dimensions may vary ± ¼ inch. Please check unit before installation.


Standards:


I.A.P.M.O. Listed File 0687

ANSI-Z-124.2




For barrier-free installation, contractor shall provide recess for curb in sub floor.

Note: Exterior floor drain for water run-off recommended.


Symmons® is a Registered Trade Mark of Symmons Industries, Inc.

Moen® is a Registered Trade Mark of Moen Corporation.


Dimensions subject to
change without notice
Contact Florestone Products to
verify product specifications.



Model PDF
Model CAD


Installation PDF
Pricing PDF
Section PDF
Section CADs



CAD Drawings are compressed in zip format (.zip)
